德国罗博特可调流量电磁阀
产品介绍

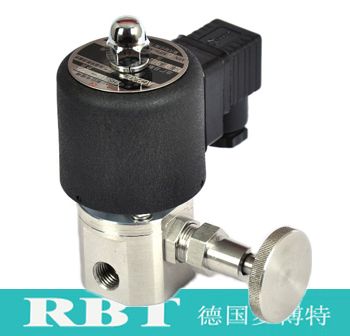

进口可调流量电磁阀 Inlet adjustable flow solenoid valve 【详细说明 Detailed description】 德国罗博特RBT进口可调流量电磁阀产品有独特设计、零压启动、密封性好,在可以对介质进行快速开启和关闭的同时,可手动调节流量大小,使流量达到理想的工况。 Germany Robert RBT imports of imported adjustable flow solenoid valve products have unique design, zero pressure start, good sealing, in the medium can be quickly opened and closed, but can be manually adjusted flow size, so that the flow of the ideal condition. 【参数说明 Parameter description】 规格尺寸:DN1-DN8 动作方式:直动型; 控制方式:常闭式; 电源电压:AC24V、AC36V、AC127V、AC220V、AC380V、DC12V、DC24V、DC36V、DC72V、DC110V、DC220V,根据工况要求选择; 防护型式:普通型、防尘型、防水型、防爆型(根据工况要求选择); 压力范围:(0-0.3MPa、0-0.6MPa无压差)、0.03-0.6MPa、0.03-1.6MPa、0.03-2.5MPa、0.03-4.0MPa、0.03-6.3MPa 介质温度:0-60℃、0-120℃、0-200℃、0-250℃(根据工况要求选择); 环境温度:-10-40℃、-20-40℃、-40-40℃、-20-60℃(根据工况要求选择); 连接方式:内螺纹连接; 阀体材质:304不锈钢、316不锈钢(根据工况要求选择)。 Size: DN1-DN8; Action mode: direct action type; Control mode: normally closed; Power supply voltage: AC24V, AC36V, AC127V, AC380V, DC12V, DC24V, AC220V, DC36V, DC110V, DC220V, DC72V, according to the requirements of the working conditions; Protection type: ordinary type, dust proof, waterproof type, explosion-proof type (according to the requirements of the working conditions); Pressure range: (0-0.6MPa, 0-0.3MPa), 0.03-0.6MPa, 0.03-1.6MPa, 0.03-2.5MPa, 0.03-4.0MPa, 0.03-6.3MPa The medium temperature: 0-60, 0-120, 0-200, 0-250, according to the working conditions, the temperature of the medium is selected; Environmental temperature: -10-40, -40-40, -20-40, -20-60, (according to the working conditions, the choice of the conditions); Connection mode: internal thread connection; Body material: 304 stainless steel, 316 stainless steel (according to the requirements of the working conditions). 【性能特点 Performance features】 线圈稳定性及使用性的保证; 弹簧寿命值高并且稳定; 使用寿命均合标准500万次; 涉及设备用途广阔; 电磁阀检测均合格通过国际标准。 Coil stability and the use of guarantee; Spring life value is high and stable; Standard 5000000 times using life; Wide application of equipment; Solenoid valve testing are qualified by international standards. 【应用范围 Application range】 **、石化、电力、能源、轻工、化学、科研、污水处理、管道介质自动化控制、蒸汽熨烫衣物设备等。 Military, petrochemical, electric power, energy, light industry, chemical, scientific research, sewage treatment, pipeline medium automation control, steam ironing clothes and equipment, etc.. 德国罗博特RBT阀门集团有限公司中国总代理(上海波昂一级代理商) 用户评论 产品评分 目前评分共0人 产品质量
